10.4'' large color LCD 3 Part Fully Automated Hematology Analyzer
MSLAB46
Product introduction
High Stability & Accuracy
Use the most advanced binuclear embedded digital circuit system, to
make the analytical ability great and stable
2 counting channels of WBC and RBC, to make the test results more
accurate and less cross- contamination
Use CPLD technology in data processing, to avoid the interference
of electromagnetic signals
Reliable Operation System
ARM intelligent micro-processing technology
Data analysis: intelligent pulse formulation technology
Classification: floating landmark technology
Module design, fast maintenance
User-friendly System
10.4’’large color LCD displays main menu and all parameters & color
histograms in one screen
Brief operation instruction built-in software, easy for user to
view
Separate module design, very simple mechanical structure, easy
maintenance
Self check for hardware, alarm for error
Reagent depletion alarm for Lyse, Cleanser and Diluent, as optional
function
Product advantages:
- 3-part blood cell counter
- 20 parameters + 3 histograms
- 2 counting channels
- Up to 60 samples/hour
- 10.4″ large color LCD
- Built-in printer, USB port
- Stable, durable and economical
Main Features:
- 2 counting mode: whole blood, pre-dilution blood
- Sample pre-dilution: internal diluter, add 1ml diluent automatically by the needle, no
need to add diluent manually to avoid deviation.
- Calibration: automated or manual
- QC: comprehensive QC program, forming and printing the histogram
automatically
- Block removal: Real time monitor, high ignition, soak, flush and back flush

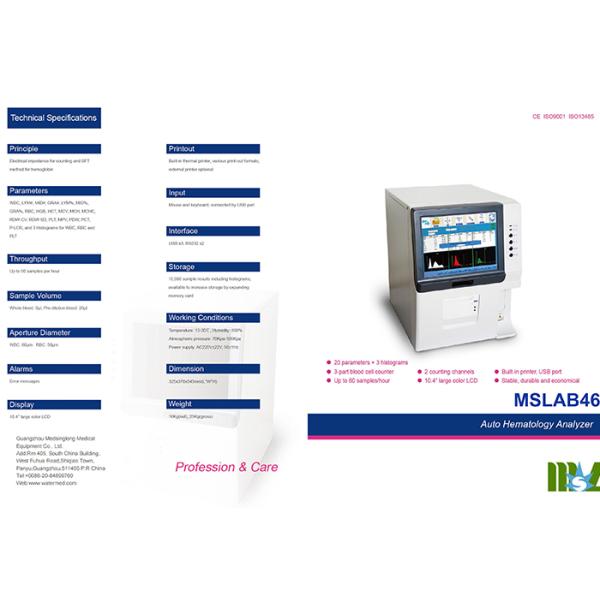

Product specifications:
Principle | Electrical impedance for counting and SFT method for hemoglobin |
Throughput | Up to 60 samples per hour |
Sample Volume | Whole blood: 9μl, Pre-dilution blood: 20μl |
Aperture Diameter | WBC: 80μm RBC: 50μm |
Display | 10.4’’ large color LCD |
Storage | 10,000 sample results including histograms,
available to increase storage by expanding memory card |
Printout | Built-in thermal printer, various print-out formats; external
printer optional |
Interface | USB x3, RS232 x2 |
Temperature | 15-35℃ |
Humidity | ≤80% |
Atmospheric pressure | 70Kpa-106Kpa |
Power supply | AC220V±22V, 50±1Hz |
Dimension | 325x370x545mm(L*W*H) |
Weight | 16Kg(net), 25Kg(gross) |
Parameters | WBC, LYM#, MID#, GRA#, LYM%, MID%, GRA%,RBC, HGB,HCT, MCV, MCH,
MCHC, RDW-CV, RDW-SD, PLT, MPV, PDW,PCT, P-LCR, and 3 Histograms
for WBC, RBC and PLT |
Product picture
